Paper and Foil - Sheeters, Slitters

SMAG SATURNE 350

Sheeting with diverters for cuts and defective sheets - width 350 mm

- Max. web width : 350 mm
- Max. unwind roll diameter : 850 mm
- Number of knives : 4
- Min. distance between two knives : 12 mm
- Min. sheet stroke : 10 mm
- Max. sheet stroke : no limit
- Average production speed : 5000 to 8000 sheets/hour depending on the sheet stroke

- length : 2400 mm
- width : 1200 mm
- height : 1600 mm
- weight : 600 kg
- compressed air : 6 bars - 2,5 N m3/h
- electrical power : 4 Tri 230 or 400 V + neutral + ground

ROBUST 800 Sheeter

Material: Foils, PET
max. Material Width: 750 mm
Machine Width: 800 mm
Material Roll Acceptance
Roll- Ø: maximum 800 mm
Core-Inside-Ø: 3" (76mm)
Roll Weight : maximum 250 kg
Stacking
Min. Stacking Length: 200 mm
Max. Stacking Length: 1300 mm
Mains Connection Voltage: 3 x 400 V; 50 Hz + MP and earth
Pneumatic Connection: min. 5 bar (customer supplied)
Sheet Tolerance: up to 1.000 mm length +/- 0,5 mm (depending on material) from 1.000 mm length +/- 0,5 0/00
Total Weight: approx. 3.000 kg
Max. Floor Loading: 1,5 t. per m²

STARFOIL Slitting machine

Unwind section
• Shaft less unwind
• Compact unwind
• Braked unwind powder magnetic
• Maximum roll width - 2000mm / 1620mm / 1300mm
• Maximum roll diameter - 1000mm (40 inch)
• Minimum web width (shaft less unwind) - 450mm (18 inch)
• Minimum roll diameter (for floor pickup) - 400mm (16 inch)
• Maximum roll weight - 1200kg
• Edge guiding
• Core material - Cardboard
• Core size - 76mm (3 inch) and 152mm (6 inch)

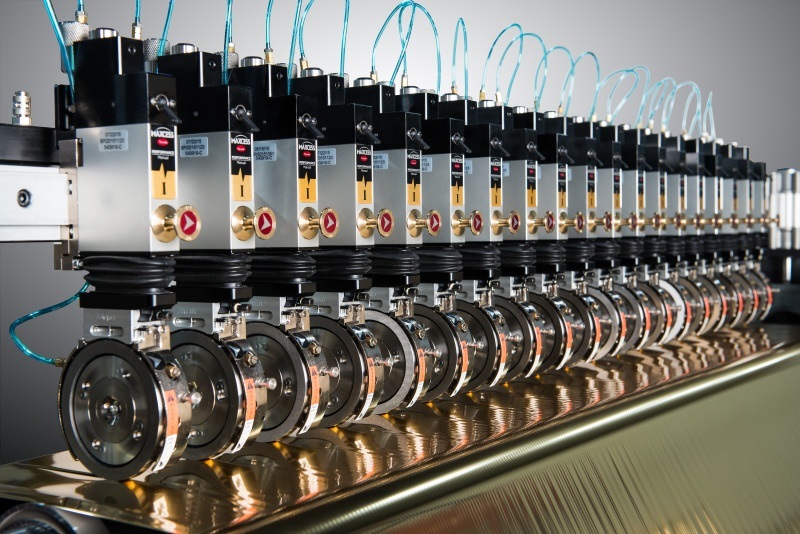

Slitting Section
• Razor and Shear slitting
• Shear top knife holders included - 30
• Shear bottom anvils included - 30
• Razor holders included - razor in comb
• Minimum slit width - 20mm (razor) / 30mm (shear)
• Vacuum splice table
• Fully automatic shear knife positioning

Rewind Section
• Maximum roll diameter - 610mm
• Maximum rewind weight (per shaft) - 300kg
• Max slit width - 1960mm (77 inch) / 1600 mm (63 inch) / 1280 mm (50 inch)
• Lay-on rollers
• Differential shafts (25mm wide chucks)
• Max Tension - 20kg across full width per shaft
• Closed loop rewind tension control
• Core Type - cardboard
• Core size 76 mm

General
• Maximum machine speed - 600 m/minute
• Power Requirement - 380-415V+/- 10%, 3 phase (No Neutral), 50/60Hz, 40 KVA @ 63 Amps
• Air Requirement - 7 bar minimum, >0.2 m3/hr, clean and dry
